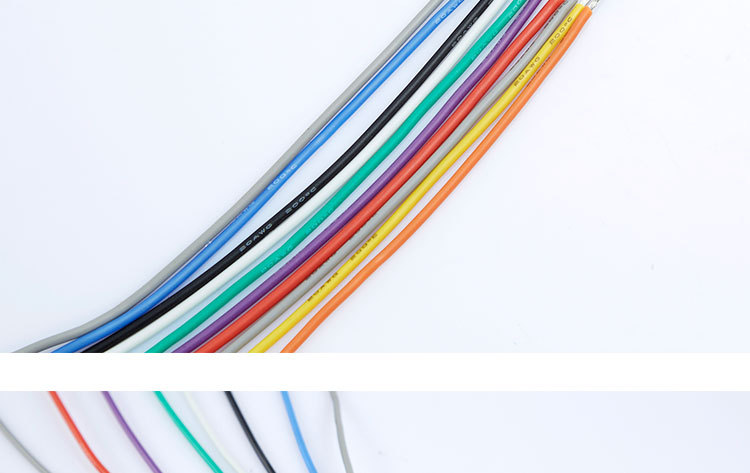

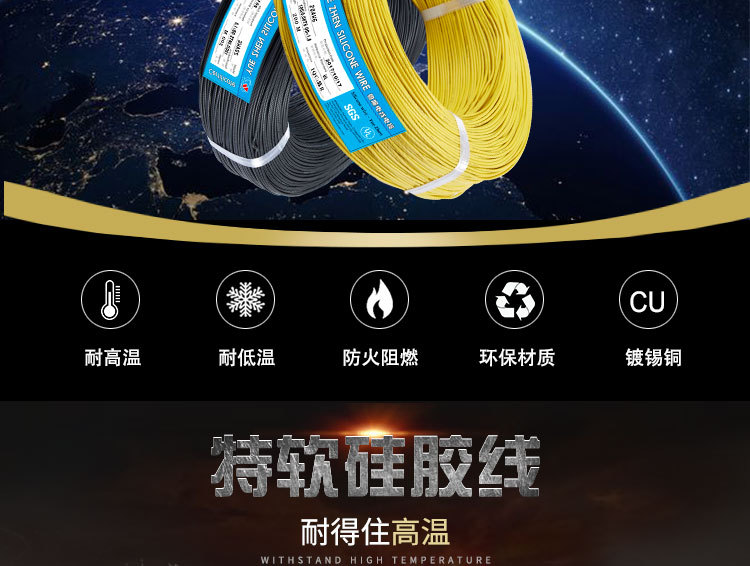

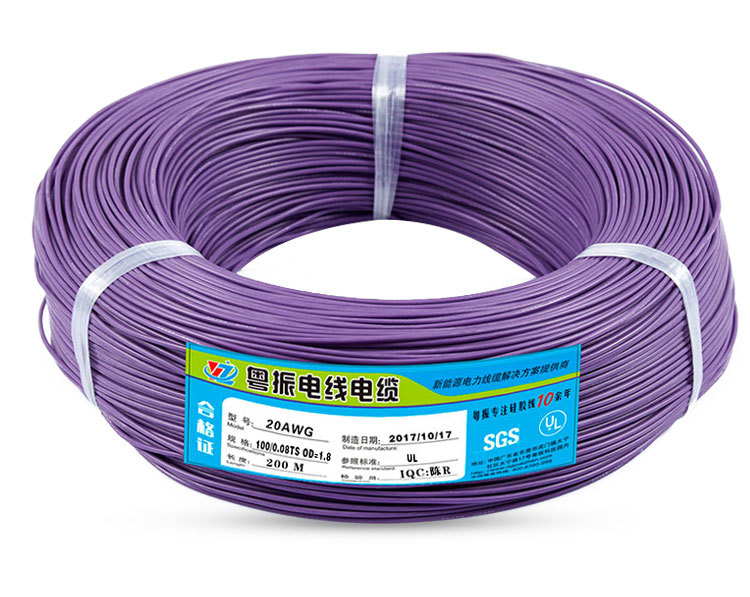

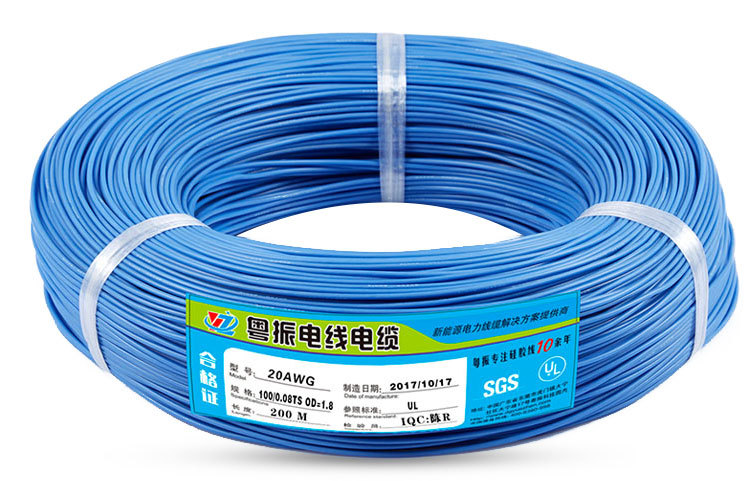

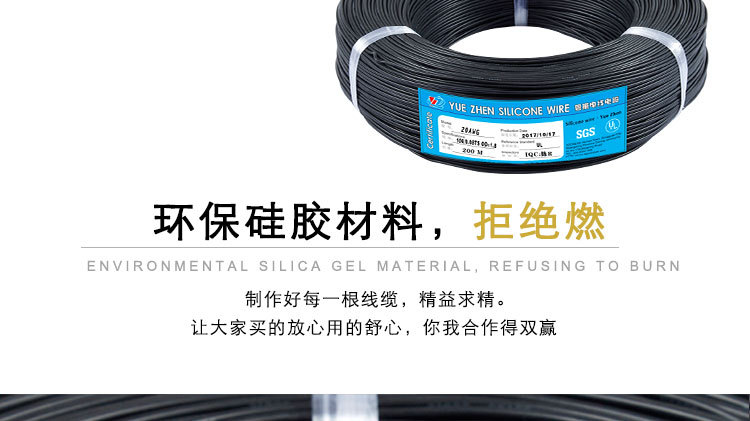

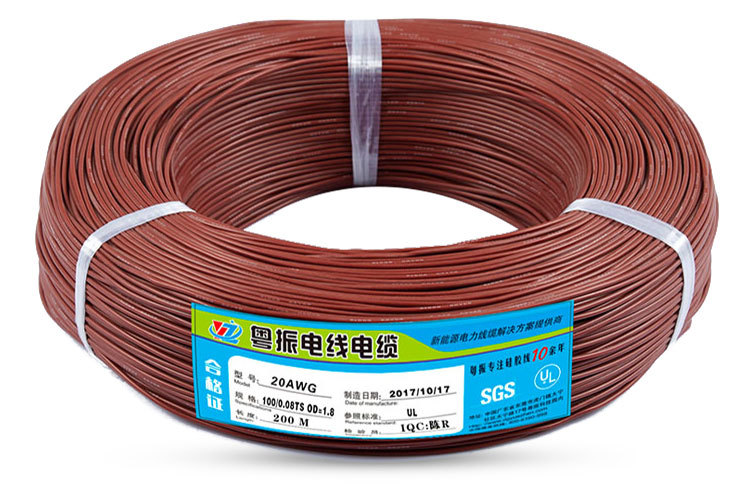

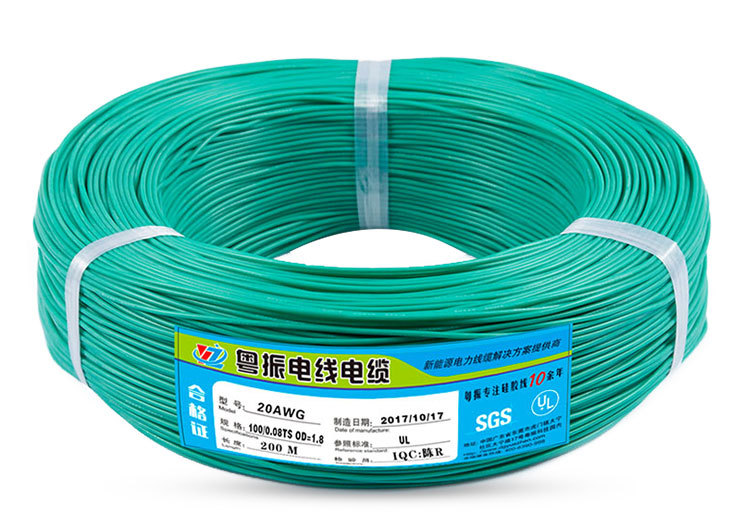

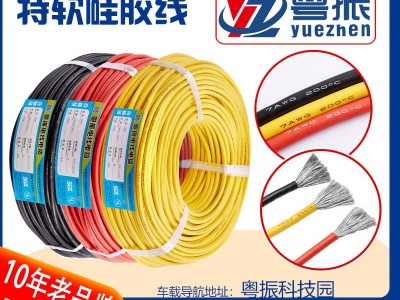

粤振厂家直销｜并加工定做电子连接线特软硅胶 20awg耐高温硅胶线

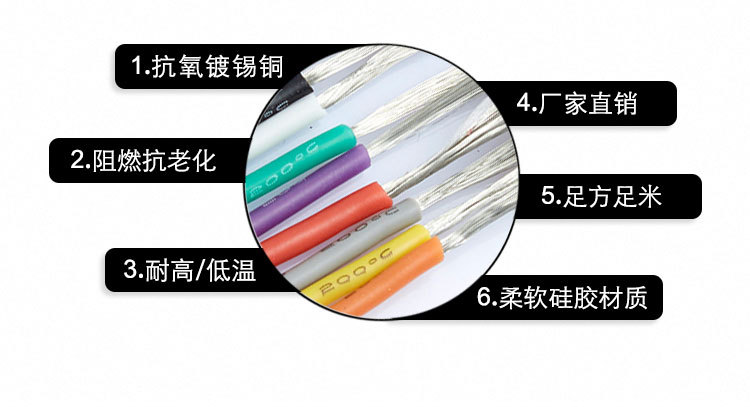

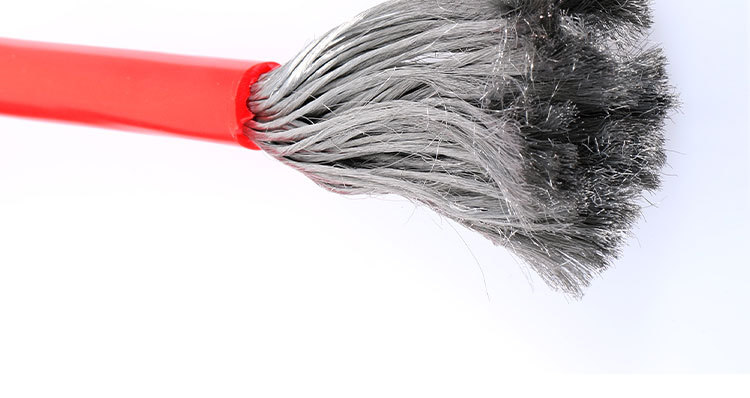

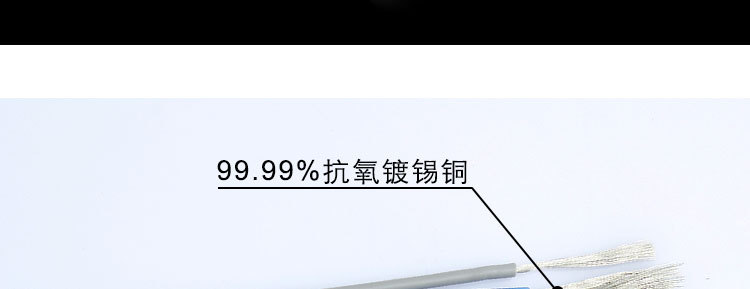

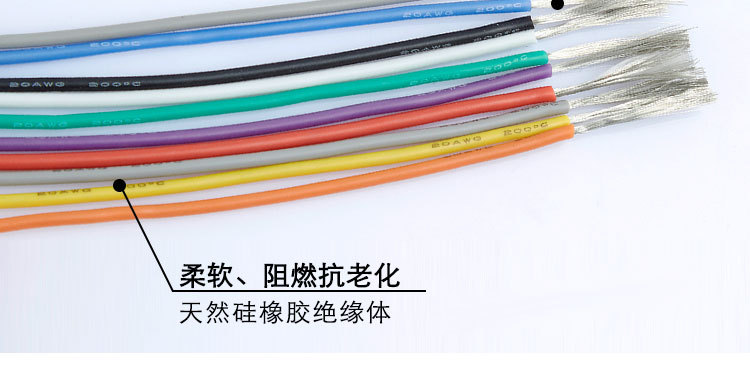

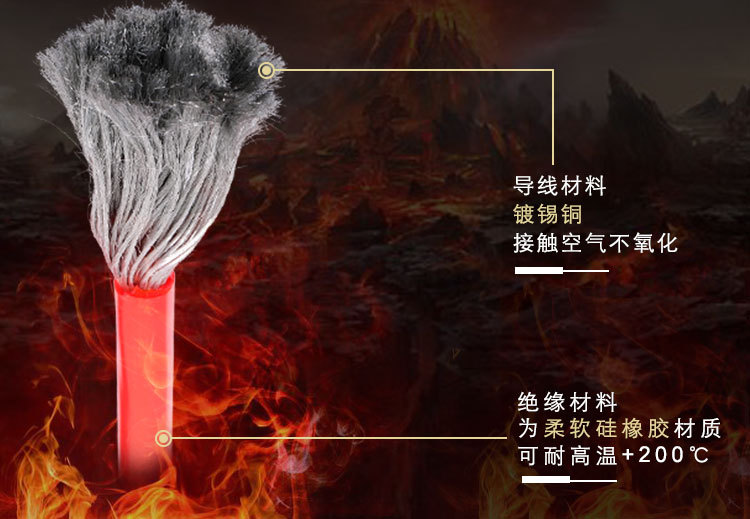

特软硅胶线0.08环保无氧镀锡软铜
| 导体Condutor | 绝缘体Insulator | 电气特性Electrical | 包装Packing |
线号AWG平方square
| 导线结构 Internal Construction (NO.×φmm) | 直径 | 绝缘厚度 Insulation Thickness (mm) | 绝缘厚度 Insulation Thickness (mm) | 成品外径 External Diameter (mm) | 导体电阻 欧姆千米 Conductor resistance | 米/卷 (Mt/Coil) |
| 30 | 11×0.08 | 0.3 | 0.55 | 0.8 | 344.82 | 1 | 2500/轴 |
| 28 | 16×0.08 | 0.36 | 0.38 | 1.2 | 2105.5 | 1.6 | 1500/轴 |
| 26 | 30×0.08 | 0.5 | 0.55 | 1.5 | 114.49 | 3 | 400m/卷 |
| 24 | 40×0.08 | 0.58 | 0.55 | 1.6 | 86.2 | 4 | 400m/卷 |
| 22 | 60×0.08 | 0.71 | 0.49 | 1.7 | 57.47 | 6 | 400m/卷 |

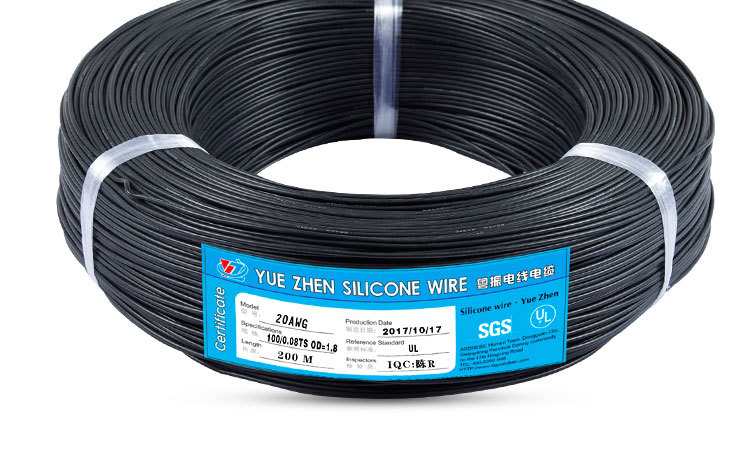

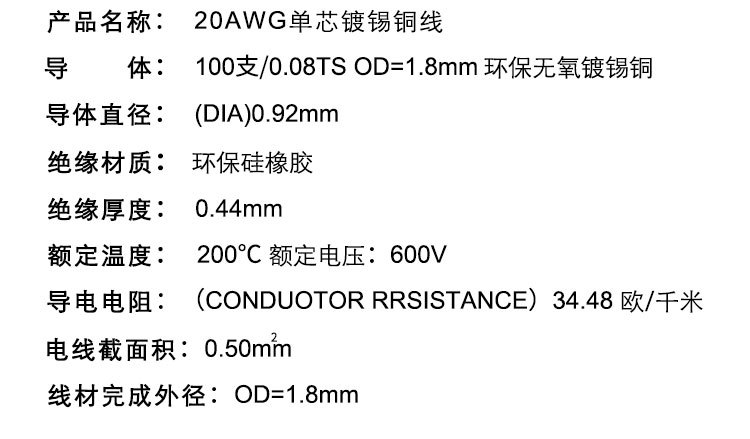

| 20 | 100×0.08 | 0.92 | 0.44 | 1.8 | 34.48 | 10 | 200m/卷 |
| 18 | 150×0.08 | 1.13 | 0.59 | 2.3 | 22.98 | 15 | 200m/卷 |
| 17 | 210×0.08 | 1.34 | 0.41 | 2.17 | 16.40 | 20 | 200m/卷 |
| 16 | 252×0.08 | 1.47 | 0.76 | 3.0 | 13.57 | 24 | 200m/卷 |
| 15 | 300×0.08 | 1.60 | 0.57 | 2.75 | 11.49 | 30 | 200m/卷 |
| 14 | 400×0.08 | 1.84 | 0.83 | 3.5 | 8.58 | 40 | 200m/卷 |
| 13 | 500×0.08 | 2.07 | 1.00 | 4.0 | 6.87 | 50 | 200m/卷 |
| 12 | 680×0.08 | 2.41 | 1.05 | 4.5 | 5.06 | 68 | 100m/卷 |
| 11 | 750×0.08 | 2.53 | 1.23 | 5.0 | 4.59 | 74 | 100m/卷 |
| 10 | 1050×0.08 | 2.99 | 1.30 | 5.6 | 3.27 | 105 | 100m/卷 |
| 8 | 1650×0.08 | 3.75 | 1.37 | 6.5 | 2.08 | 166 | 100m/卷 |
| 7 | 2400×0.08 | 4.52 | 1.85 | 7.5 | 1.43 | 240 | 100m/卷 |
| 6 | 3200×0.08 | 5.22 | 1.65 | 8.5 | 1.07 | 320 | 100m/卷 |
| 4 | 5000×0.08 | 6.53 | 2.73 | 12 | 0.68 | 500 | 100m/卷 |
| 3 | 7000×0.08 | 7.73 | 2.13 | 12 | 0.49 | 700 | 100m/卷 |
| 2 | 10000×0.08 | 7.24 | 2.35 | 16 | 0.23 | 1000 | 100m/卷 |
