商品描述

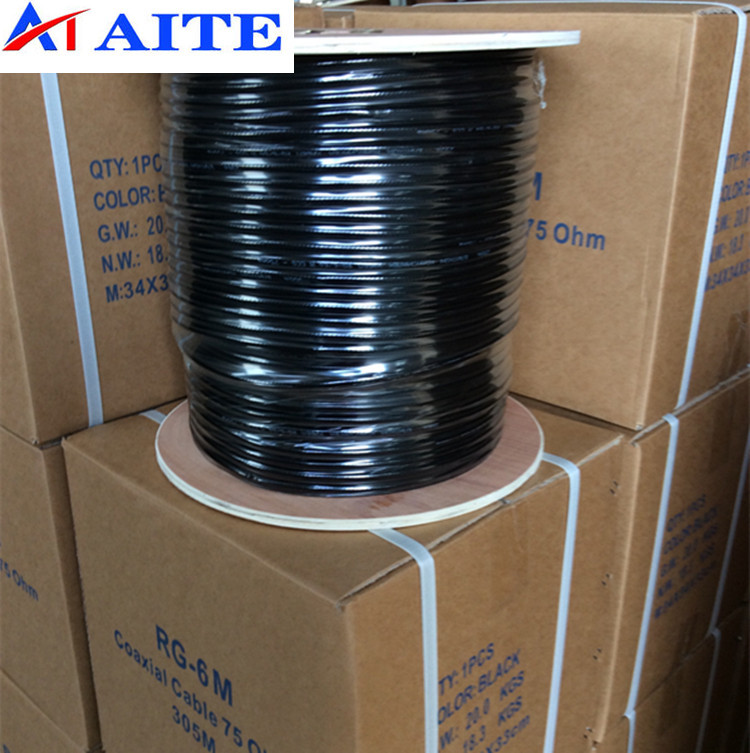

RG6U双屏蔽电视线75欧姆系列同轴电缆
RG6 Coaxial cable
Construction
Material Diameter(mm)
Inner Conductor CCS/ BC 1.02(18AWG)
Dielectric FORM PE 4.57
First Shield AL Foil 18#
Second Shield AL/CCA Braid 40%-95%
Jacket PVC/ PE 6.9
Electrical Characteristics
Impedance () 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 85.0
Return Loss
5-1000MHz(dB) ≥22
1000-3000MHz(dB) ≥20
工厂直销/现货批发/外贸OEM订制
中国同轴电缆之乡-杭州临安区
证书齐全

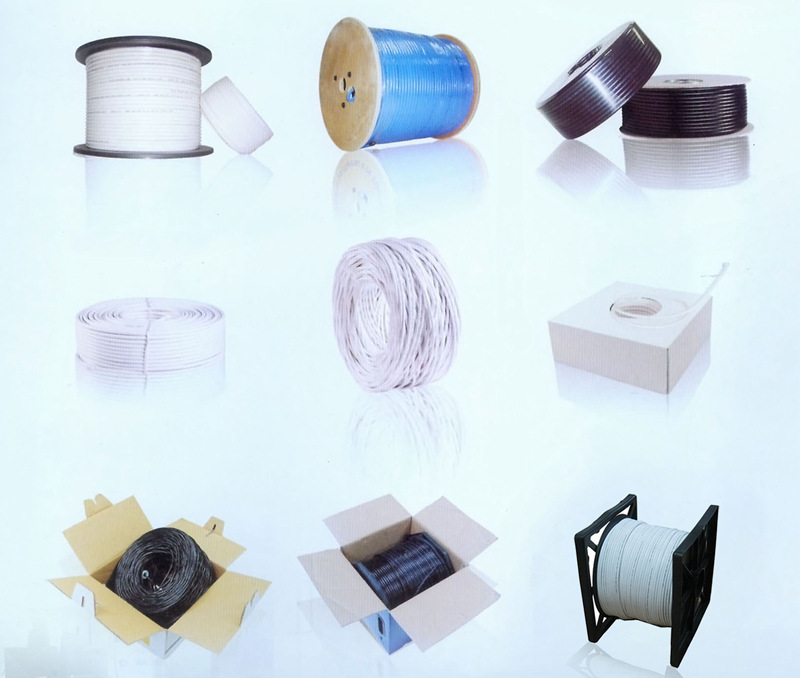

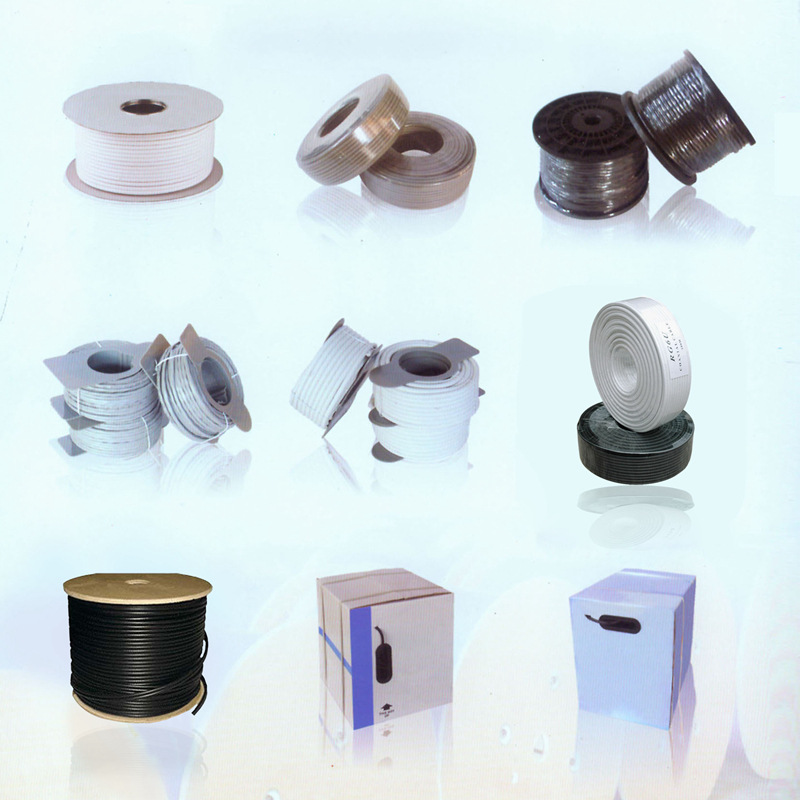

款式多样

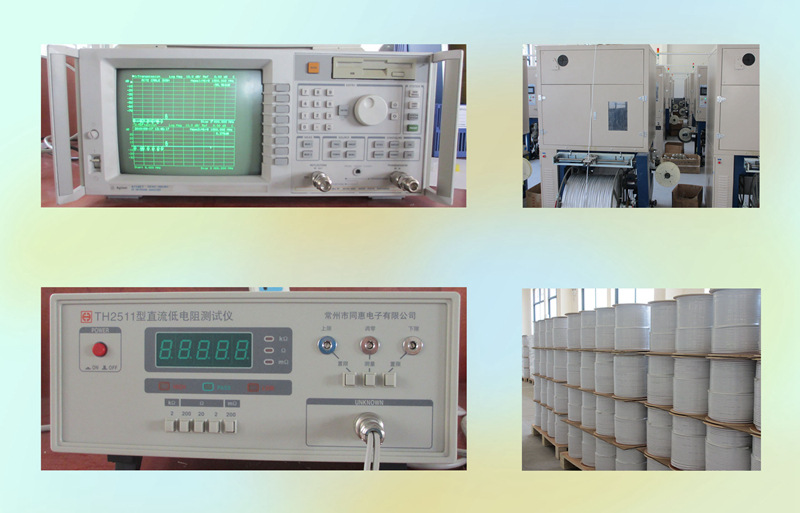

设备一流

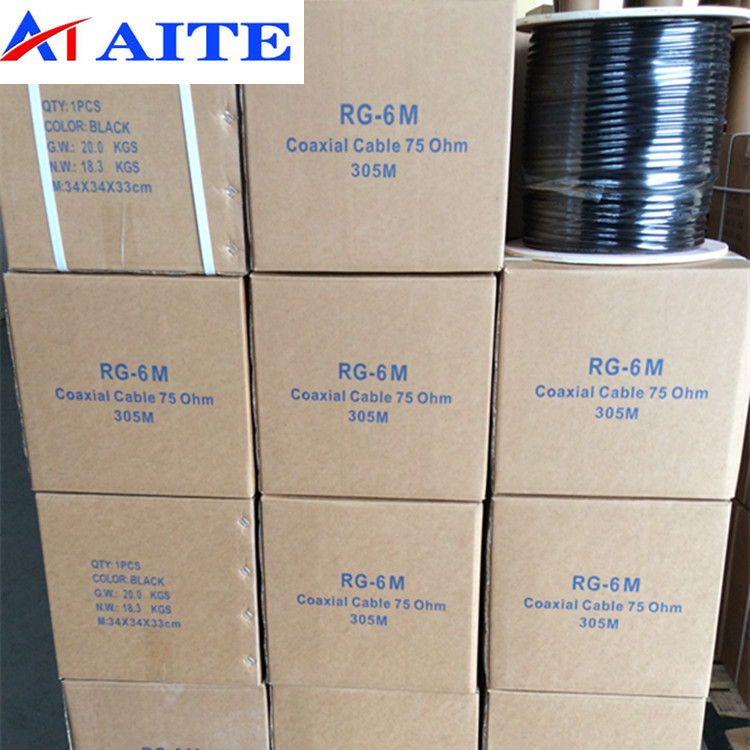

包装可按照客户要求订制
